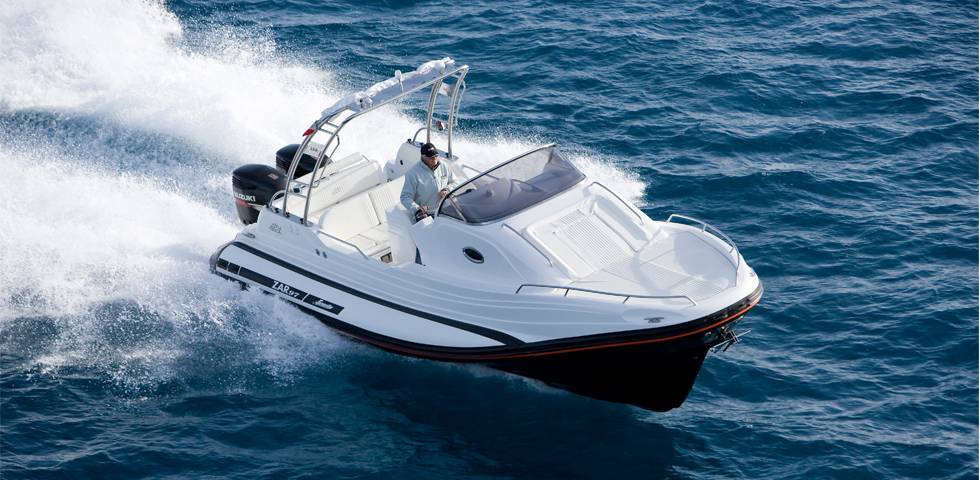

ZAR97 Welldeck 1
ZAR97 Welldeck 2

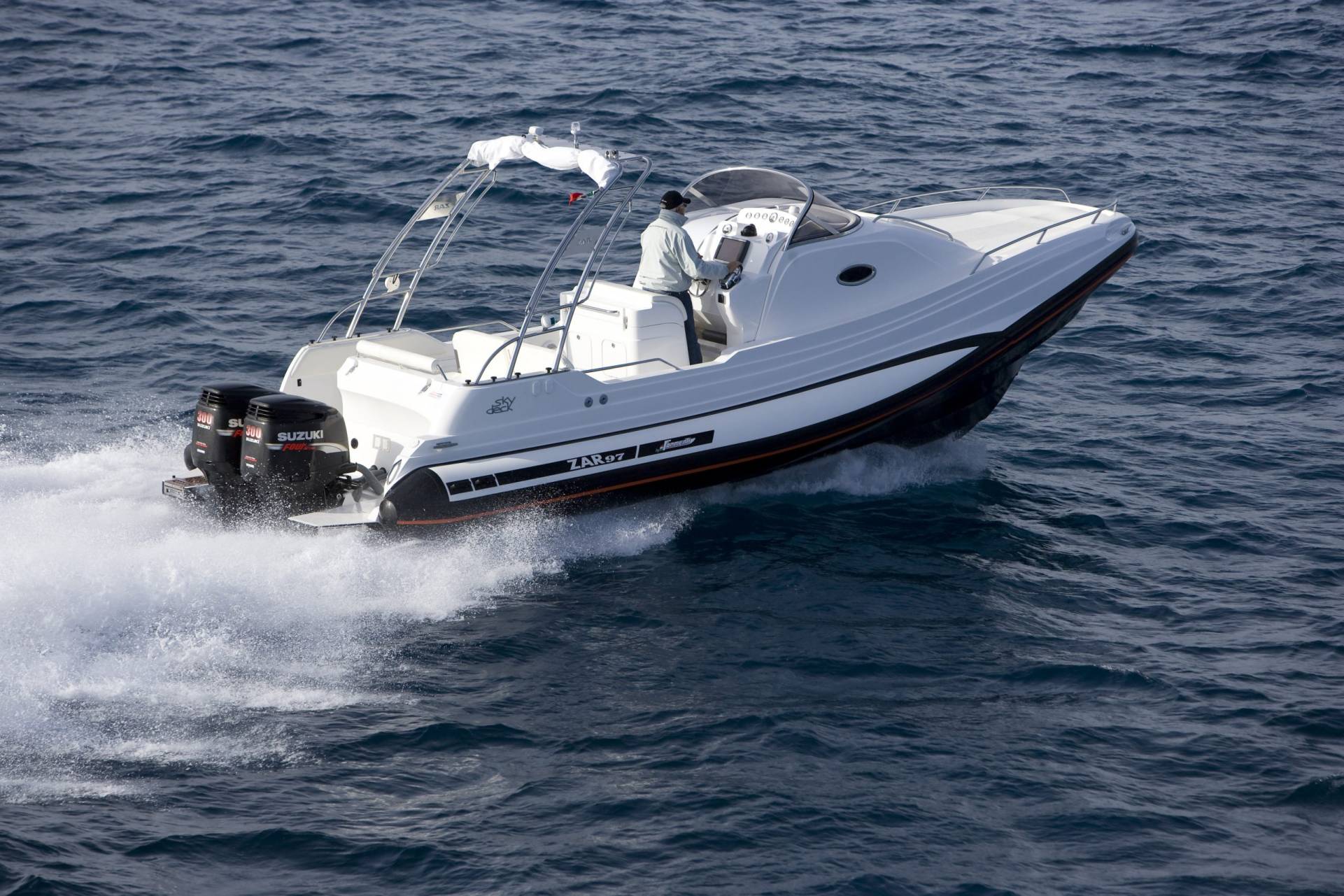

ZAR97 Welldeck 3
ZAR97 Welldeck 4
ZAR97 Welldeck 6
ZAR97 Welldeck
Features (Concept / Limited)
- Stern deck with folding ladder (Limited version only)
- Stern deck with gangway and electrical gangway fitting(Limited version only)
- Full set of stern cockpit cushions (Limited version only)
- N° 1 external cockpit wash basin with chopping board
- Stern sunbathing area
- Bow sunbathing area
- Full set of cabin cushions (n° 1 double bed in the bow + n° 1 in the stern)
- Internal cabin maple wood panelling
- N° 8 cushions of different colours for the bed in the bow(Limited version only)
- N° 5 cushions of different colours for the bed in the stern(Limited version only)
- N° 2 cushions with Sky Deck stitching (Limited version only)
- Hydraulic stearing gear
- Stainless steel framed windscreen
- Sliding plexiglass cabin entrance door
- N° 3 stainless steel portholes with fly screen
- Sliding sun light window with flyscreen and shade curtain
- Stainless steel wash basin with mixer tap for the cabin bathroom
- Shower slide bar
- Electric sea wc with macerator (Limited version only)
- Automatic open/close valve for sea wc (Limited version only)
- Black water tanks with 2° electric macerator (Limited version only)
- N° 3 cabin mirrors
- N° 2 mirrors in the bathroom
- N° 1 full-size mirror on bathroom door
- N° 9 wooden cabin closets
- N° 1 wardrobe with hangers
- N° 1 piece of furniture with 2 drawers, 2 closets and top with stainless steel no-drop edge
- N° 3 bedside tables
- N° 4 bed side lamps
- 6 kg. stainless steel anchor
- Anchor winch nose + stainless steel bow
- N° 2 fuel tanks 300 lt each (tot. 600 lt.) (Limited version)
- N° 1 fuel tank 300 lt (Concept version)
- N° 2 water tanks (80 + 67 lt.) (Limited version)
- N° 1 water tank (80 lt.) (Concept version)
- Autoclave pump system for internal and external shower, bathroom basin and external basin
- Wastewater collection and discharge tank
- Electric panel in the deck
- Fuse panel in the cabin
- Shore battery charger (Limited version only)
- Isolator switch for n° 3 batteries with charge and balance divider (Limited version only)
- Earth collecting anode on the stern mirror (Limited version only)
- Dinette table in the bow
- Table inside the cabin
- N° 6 cold spotlights for cabin
- N° 3 cold spotlights for bathroom
- Upright 50 lt.fridge with compressor
- Two burner cooker (excluding connection and gas cylinder)
- Anchor windlass controller from console and remote control handset (Limited version only)
- Shutters for cabin and bathroom portholes (Limited version only)
- Waterproof shower curtain (Limited version only)
- Fabric curtain between stern cabin and bow cabin (Limited version only)
- Bilge pump
Technical Data
- Static self emptying
- Length m 9.70
- Width m 3.25
- Internal walking length m 9.70
- Internal walking width m 2.30
- Intertubular width m 2.05
- Tubular diameter cm 60
- Watertight compartments n. 6
- Seating capacity n 14/16
- Net dinghy weight kg 2,800
- (with standard equipment, without
- liquids and motor) ± 10% variable datum
- Maximum power applicable kW 442- HP 600
- Minimum power applicable (minimum performance) HP 350
- Power recommended (average performance) HP 450/500
- Engine shaft lenght
- 1 engine XXL
- 2 engines XL
- weight installable motors kg 600
- CE certification with “B” design category (A+a form) .
Optional Equipment
- Complete dingy heuling belt kit for launch/accomodation
- Stainless steel roll-bar with sun tend for stern sunbathing area
- Stainless steel arcs and telescopic for navigation lights and anchor lights installed of the stainless steel roll-bar
- Sun tend with 3 stainless steel arcs when the roll-bar is not installed
- Sliding electric stern gangway with teck grating
- Sliding electric stern gangway with iroko grating
- Multimedia kit: Audio Video System, Digital Terrestrial Tv, DVD-CD-MP3-Dvix, iPOD Video, LCD 17
- Electric system
- Navigation kit Garmin GPS MAP 5012C colour Touchscreen + Echo-Sounder
