55' STAB

16.41m Up to 68kn

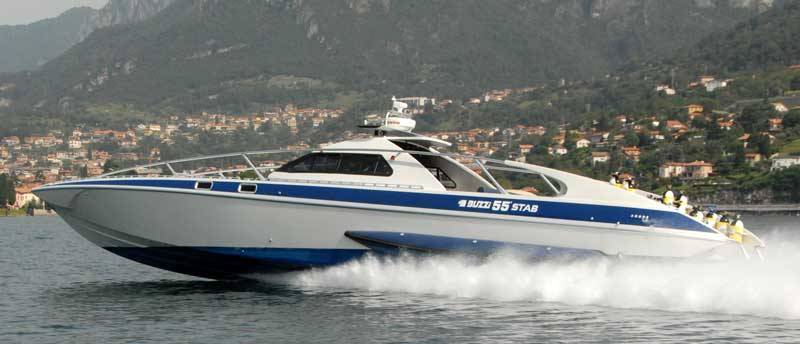

The new Buzzi 55' Stab is a high-performance boat based on the military version FB 55' a v-multistepped hull, tested in competitions at speed over 100 mph, in very rough waters. With a beam of hull of 3.5 m ( 2.856 m with STAB® deflated) and a length of 16.40 m, is basically a narrow beam boat, for better rough water performances that has a great stability and buoyancy thanks to the STAB ® inflatables.

The cockpit can be equipped with a sofa with two-three seats (two during navigation); two seat-boxes and four Tecno G10 seats. The two seat-boxes give two more seats in the cockpit, and they can be used during navigation, thanks to the handles placed on the back of Tecno G10 seats.

In the right one can be installed a refrigerator, while the left one is devoted to storage of some equipment. Each of the seat-box has four glass-holders. On the boat sides, behind them, are placed a speaker of the Hi-Fi system and a watertight hatch. The left one is for storage of small objects, while the right one gives access to the distribution taps of the air conditioning system. Below the hardtop are placed four damped Tecno G10 seats, that are controlled by an electric actuator, which allows easy variable support, dependent on sea conditions, by the simple push of a button. Between the two rows of seats are placed the grillages for the air suction of the fancoils, which are placed below the cockpit floor. On the left side can be placed the sub-woofer of the Hi-Fi system. In the front part of the cockpit is placed, on one side, the wheelhouse with the driver's console. On the other side is placed the radio and air conditioning system console, with VHF marine radio, Clarion Hi-Fi system and Air conditioning system control unit for the cockpit.


Length Overall - 16.40 m / 53' 10''
Max Beam With Inflated Collar - 3.50 m / 11' 48''
Max Beam With Deflated Collar - 2.85 m / 9' 35''
Draft - 1.20 m / 3' 94''
Displacement Empty/Dry - 12700 kg / 27999 lbs
Displacement Full Load - 15000 kg / 33069 lbs
Max payload including fuel - 900 Kg crew + 1470 kg fuel + 180 kg equipment + 150 kg water = 2700 kg / 1984 lbs crew + 3241 lbs fuel + 397 lbs equipment + 331 lbs water = 5953 lbs
Inboard Engine - 2x1000 HP, speed in lightship >60 kn
Gearboxes - ZF 360
Drives - ZF Trimax 2500I
Fuel Capacity - 1750 l diesel / 462 US gal
Water Capacity - 150 l / 39 US gal
Max Person Capacity - 12
Max Hp / Max speed - 2x1500 HP, 70 kn
Min Hp / Max speed - 2x800 HP, 55 kn
Range at 35 knots - 300 nm
Design Category - A
