48' STAB

14.54m Up to 65kn

BUZZI 42' RIB SPORT

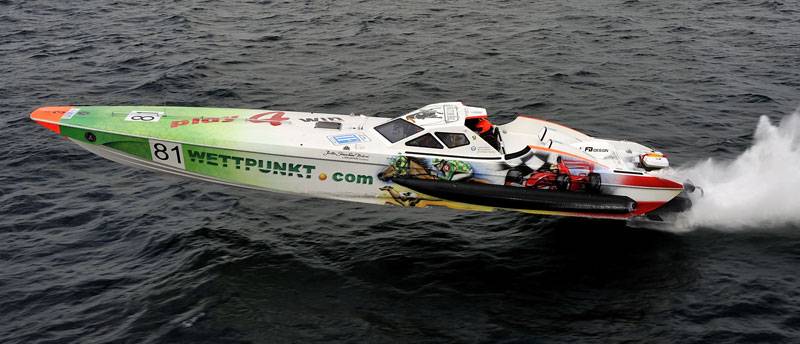

The FB 48' STAB is one of the latest of FB Design innovative creations that has been developed to tighten the gap length of the FB Design model range. Featuring a multi stepped hull, the typical anti stuff bow and the integration of the drives, the FB 48' STAB is a winning hull well tested in many offshore powerboat racing.

With the STAB® concept, it's possible to increase the width of the boat maintaining the rigid hull unchanged, thus obtaining better performance in terms of floatation and stability compared to a rigid hull without tubular members.

The basic configuration features an hardtop open on the back, two rows of three Tecno Single Seats with electrically adjustable seating plane. The six seats are positioned inside the deep and well protected cockpit which has been designed to allow for the installation of ballistic panels. In alternative, the Tecno Single seats can be substituted by the more advanced Tecno G10 Seats with an extremely efficient sprung dump system.

Access to the cabin under deck where a toilet, a pantry and the sleeping quarters are located, is via a watertight door in the cockpit. In the dry cabin could fit also up to 6 Tecno Moto seats. A rotational seat can be installed on the deck at bow.





Optional Features

  • Stab® System
  • Hippo Fender
  • Radar Arch
  • Radar With Radome Antenna
  • Gps Map Chart
  • Echo Sounder
  • Hard-top
  • Bimini Top
  • Tecno G10 Seats
  • Tecno Double Seats
  • Seat-boxes
  • Additional Fuel Tank
  • Anti Fouling
  • AC System
  • Genset

Standard Features

  • Console With Instruments
  • Navigation Lights
  • VHF Radio
  • Magnetic Compass
  • Power Steering System
  • 4 Tecno Single Seats
  • Battery System
  • Electrical Bilge Pumps
  • Manual Bilge Pumps
  • CO2 Fire Extinguisher
  • Navigational Equipments
  • Water Tank
  • Anchor
  • Lifting System With Belts
  • Cradle
  • Toilet
  • Galley

Specifications

Length Overall - 14.54 m / 47’ 9’’
Max Beam With Inflated Collar - 3.17 m / 10’ 5’’
Max Beam With Deflated Collar - 2.64 m / 8’ 8’’
Draft - 0.7 m / 28’’Displacement Empty/Dry - 7600 Kg / 16755 lbs
Displacement Full Load - 11100 Kg / 24470 lbs
Max payload including fuel - 900 Kg crew + 1500 Kg fuel + 1100 Kg equip.= 3500 Kg / 1984 lbs crew + 3306 lbs fuel + 2425 lbs equip. = 7715 lbs
Inboard Engine - 2x720 HP, speed in lightship 53 kn
Gearboxes - ZF 32Drives - ZF Trimax 2200 I
Outboard Engine - 3x300 HP, speed in lightship 60 kn
Fuel Capacity - 1800 l diesel / 475 US gal
Water Capacity - 100 l / 26 US gal
Max Person Capacity - 10
Max Hp / Max speed - 2x800 HP, 65 knots
Min Hp / Max speed - 2x600 HP, 50 knots
Range at 35 knots - 500 nm
Design Category - B
