ZAR75 Suite Plus


  • 3 rows that can seat 10 persons forward running;
  • anchor forepeaks and afterpeaks;
  • back peak with the mooring accessories;
  • front sun bathing bed convertible into a double bed (cm 160 x 230) with extensions as an optional;
  • wide stem dinette with a table as an optional;
  • wide back dinette with a table included (Suite);
  • 175 x 180 back sunbathing bed (with the two back rests in the horizontal position);
  • two-seater console (that can be located in the middle or on the side of the boat) with a hydraulic wheelhouse, stainless steel rudder, 2 internal watertight compartments with door, an object holder and two peaks under the front seat, wc -as an optional;
  • three-seater multifunctional anatomic driver’s couch with double driving position (sitting up and down);

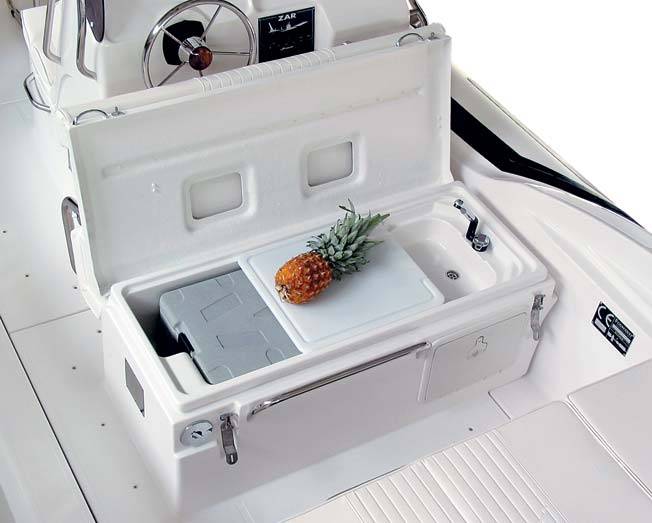

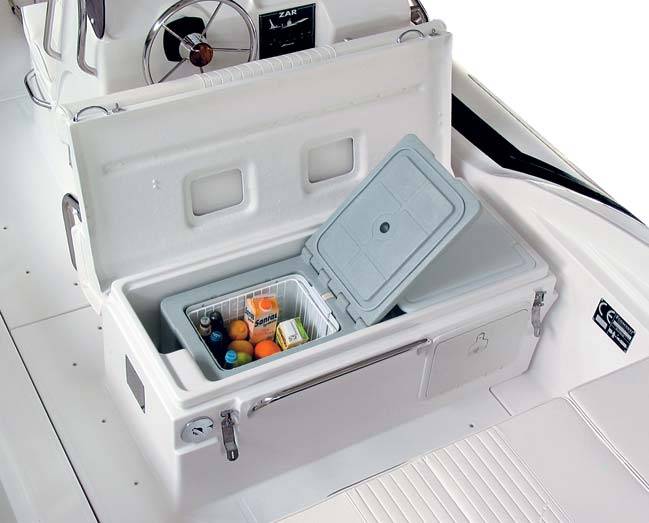

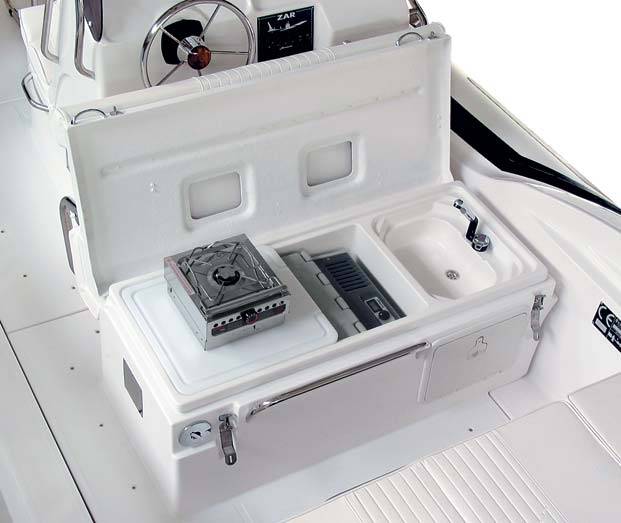

  • kitchen area under the driver’s couch equipped with:sink, mincing board (also utilizable like a place for a mono/double gas ring) and refrigerator special compartment predisposition;
  • bilge pump;
  • 8 stainless steel handles for passengers safety;
  • foldaway stainless steel ascent ramp and double VTR bridge;
  • 2 stainless steel fuel tanks (about 200+200 litres for Zar 75 and Zar 75 Suite) located under the walk floor according to standards;
  • 1 stainless steel fuel tank (about 200 for Zar 75 Plus and Zar 75 Suite Plus) located under the walk floor according to standards;
  • 6 handling handles;
  • 4 stainless steel bollards;
  • perimetric double millpond;
  • polished stainless steel 9 Kg anchor;
  • anchor-winch nose with stainless steel bow;
  • 3 stainless steel eyebolts for hangers.

Optional Equipment

  • Stainless steel roll-bar with fibreglass bases
  • Roll-bar installation with running lights,anchorage lights, horn and wiring
  • Beacon ready installed on roll-bar/console
  • Prow sunbed extension each (not for Plus version)
  • Prow complete table
  • Auxiliary engine support
  • Total sheet for night and travelling
  • Console cover
  • Seat cover
  • Eletric panel
  • Shower Complete (for stern and external wash basin) with surge tank, tank in prow, outdoor embarkation and installation
  • Complete dingy heuling belt kit for launch/accommodation
  • Anchor windlass installed with motor, cable, chain and double controls (in console and anchor housing)
  • Wake board kit complete with counterplates
  • Left stern deck with folding ladder (single and double engine)
  • Right stern deck (single and double engine)
  • Modification kit from Zar 75 to Zar 75 suite
  • Modification kit installation from Zar 75 to Zar 75 suite
  • Console change kit from ZAR 75 to ZAR 75 plus
  • Installation console change
  • Eletric refrigerator (12/24V)
  • Flexi-teak for cockpit
  • Felxi teak for the bridges + covers (4pz)
  • Felxi teak for the bridges (2pz)
  • Flexi-teak installation
  • Nautical camping tent
  • Sunroof 3 arch
  • Rear telescopic sun-cover for roll-bar
  • Prow sunroof (rear telescopic sun-coverextension)
  • Pair of canopies (dx-sx) for telescopic sun-cover
  • Pair of canopies (dx-sx) for prow sun-bathing bed extension

Technical Data

  • Static self emptying
  • Homologation “CE cat. “B”
  • Length m 7.42
  • Width m 2.82
  • Internal walking length m 7.35
  • Internal walking width m 2.20
  • Intertubular width m 1.68
  • Tubular diameter cm 58
  • tubular compartments n. 6
  • Seating capacity n. 14
  • Net dinghy weight kg 1,100
  • (with standard equipment, without
  • liquids and motor) ± 10% variable datum
  • Maximum power applicable kW 225 / HP 300
  • Minimum power applicable(minimum performance) HP 130
  • Power recommended (average performance) HP 150/250
  • Engine shaft lenght XL
  • weight nstallable motors kg 480
  • CE certification with “B” design category and CE type testing. (A+a form).

Further Accessories Only For Plus Version

  • Electric sea WC with installed direct discharge
  • Electric sea WC with installed black water tank
  • Console cover
  • Shower (for stern external wash basin and bathroom in console) complete with autoclave, tank in prow, outdoor embarkation, discharge pump and installation
  • Prow sunbed extension each (for Plus version)
  • Installation supplementary water tank of about 67 litres
  • Supplementary 80 lt fuel tank in the bow
  • Supplementary 80 lt fuel tank installation
  • 8 plug electrical panel
