ZAR73 Skydeck Outboard

ZAR73 Concept

  • stern sun deck with folding ladder ;
  • full set of stern cockpit cushions;
  • 1 wash basin in external cockpit;

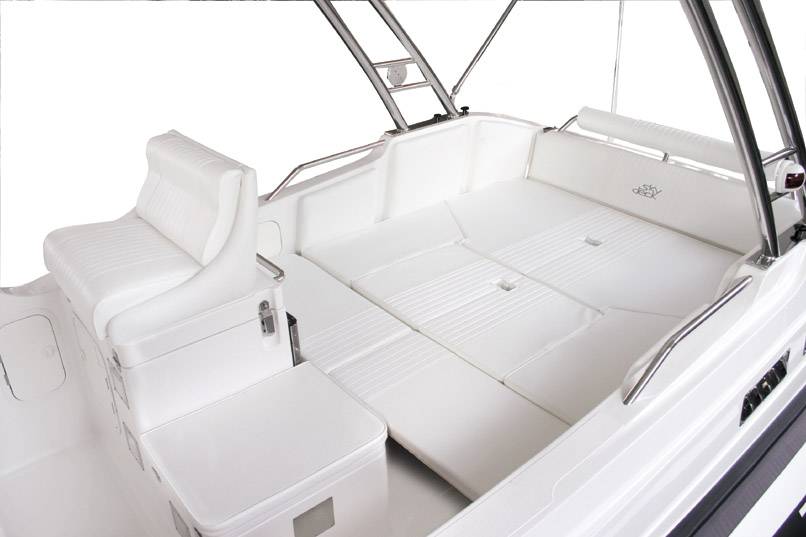

  • stern sunbathing area;
  • bow sunbathing area;
  • cabin cushions with wall padding;
  • 6 cabin cushions;
  • 2 cabin cushions with SKY DECK stitching;
  • mechanical + hydraulic steering gear;
  • hydraulic steering gear (only included in outboard version);
  • 2 batteries with isolator switch (not included in outboard version);
  • framed windscreen;
  • Plexiglass cabin entrance door;
  • framed opening side windows;
  • cabin with sliding door for bath/shower;
  • wash basin for cabin bathroom;
  • sea/chemical WC fi tting;
  • 2 mirrors (cabin + bathroom);
  • anchor winch nose + stainless steel bow;
  • about 270 lt fuel tank;
  • about 67 lt water tank;
  • autoclave pump system for internal and external showers;
  • electric panel;

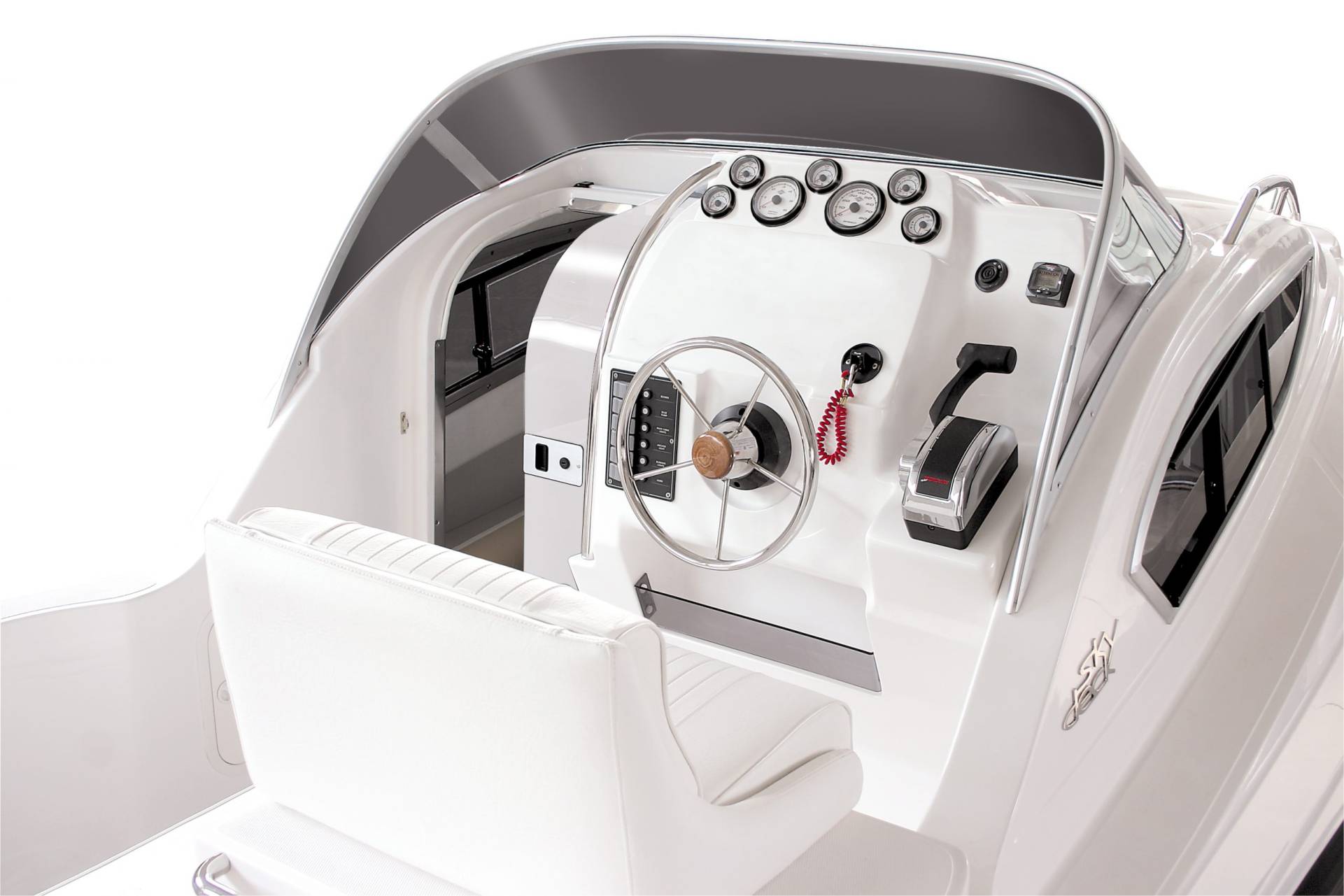

  • 9 instruments on console;

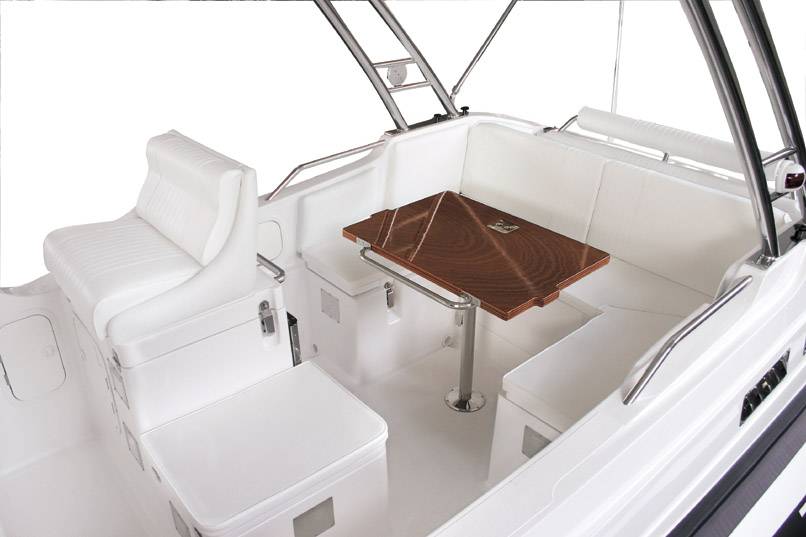

  • dinette wooden table;
  • cold spotlights for cabin and bathroom;
  • blue Plexicor bathroom top;
  • repairs kit;
  • a pair of paddles;
  • bilge pump;
  • infl ating device;
  • stainless steel rudder;
  • 4 stainless steel bollards;
  • 3 stainless steel eyebolts for hangers;
  • 10 stainless steel handles for passengers safety.

ZAR73 Limited

  • stern sun deck with folding ladder ;
  • full set of stern cockpit cushions;
  • 1 wash basin in external cockpit;
  • stern sunbathing area;
  • bow sunbathing area;
  • cabin cushions with wall padding;
  • 6 cabin cushions;
  • 2 cabin cushions with SKY DECK stitching;
  • mechanical + hydraulic steering gear;
  • hydraulic steering gear (only included in outboard version);
  • 2 batteries with isolator switch (not included in outboard version);
  • framed windscreen;
  • Plexiglass cabin entrance door;
  • framed opening side windows;
  • cabin with sliding door for bath/shower;
  • wash basin for cabin bathroom;
  • electric sea WC with macerator;
  • black water tank with second eletric macerator;
  • 2 mirrors (cabin + bathroom);
  • 7 kg. stainless steel anchor;
  • anchor winch nose + stainless steel bow;
  • about 270 lt fuel tank;
  • about 67 lt water tank;
  • autoclave pump system for internal and external showers;
  • wastewater collection and discharge tank;
  • electric panel;
  • n. 9 instruments on console;
  • dinette wooden table;
  • cold spotlights for cabin and bathroom;
  • upright 50 l compressor fridge;
  • two burner cooker (excluding connection and gas cylinder);
  • stainless roll-bar with navigation lights, anchor lights, horn and headlight;
  • cockpit total sun tend;
  • blue Plexicor bathroom top;
  • shore battery charger (not included in outboard version);
  • anchor windlass controlled from console and remote control handset;
  • Flexi-teak cabin and bathroom interior;
  • repairs kit;
  • a pair of paddles;
  • bilge pump;
  • infl ating device;
  • stainless steel rudder;
  • 4 stainless steel bollards;
  • 3 stainless steel eyebolts for hangers;
  • 10 stainless steel handles for passengers safety.

Technical Data

  • Static self emptying
  • Homologation “CE cat. “B”
  • Length m 7,30
  • Width m 2,54
  • Internal walking length m 7,10
  • Internal walking width m 2,00
  • Intertubular width m 1,50
  • Tubular diameter cm 53
  • Tubular compartments n° n. 6
  • Seating capacity n. 10
  • Net dinghy weight (with standard equipment
  • and engine and without fluids in tanks);10% variable datum
  • Concept kg 1.400
  • Limited kg 1.700
  • Power outboard version maximum applicable CV 250
  • Power outboard version minimum applicable CV 200

Optional Equipment

  • autoclave shower system with a water tank of about 60 l. under the walk floor;
  • stainless steel tilting roll bar with go ahead lights, anchorage lights, horn;
  • beacon;
  • auxiliary motor support;
  • electric panel;
  • stainless steel plate and anchor-winch nose for electric anchor windlass predisposition;
  • anchor windlass installation with motor, cable, chain and control.
