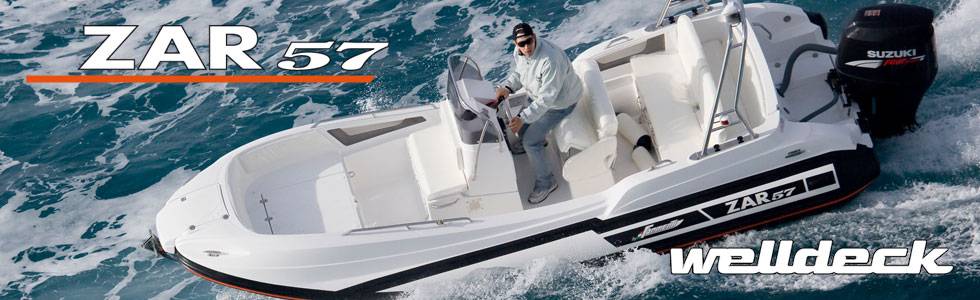

ZAR57 Welldeck


  • 3 rows that can seat 8 persons forward running;
  • anchor forepeaks and afterpeaks;
  • back peak with the mooring accessories;
  • front sun bathing bed convertible into a double bed (cm 150 x 195) with extensions as an optional that includes dunnages and pillows, the middle dunnage with a stainless steel leg can be used as a table;
  • wide stem dinette with a table as an optional;
  • wide back peak;
  • wide front peak;
  • four side peaks in the stem sides;
  • 160 x 195 back sunbathing bed (with the back rest in the horizontal position);
  • two-seater console with a hydraulic wheelhouse,
  • stainless steel rudder, 2 internal compartments with door, an object holder and two peaks under the driver’s couch and under the front seat. Reclining driver’s couch with pantograph movement;
  • bilge pump;
  • repairs kit;
  • inflating device;
  • a pair of paddles;
  • 7 stainless steel handles for passengers safety

Technical Data

  • Static self emptying
  • Homologation “CE cat. “B”
  • Length m 5.77
  • Width m 2.54
  • Internal walking length m 5.70
  • Internal walking width m 2.00
  • Intertubular width m 1.44
  • Tubular diameter cm 53
  • N. tubular compartments n. 6
  • Seating capacity n. 12
  • Net dinghy weight kg 680
  • (with standard equipment, without liquids and motor) ± 10% variable datum
  • Maximum power kW 114/HP 155
  • Minimum power kW 52/ HP 70
  • Power recommended kW 67/111
  • (average performance) HP 90/150
  • Engine shaft length L
  • Max. weight installable motors kg 340

Optional Equipment

  • Stainless steel roll-bar
  • Roll-bar installation with running lights,anchorage lights, horn and wiring
  • Beacon ready installed on roll-bar/console
  • Prow sunbed extension with limber board and table legs
  • Auxiliary engine support
  • Total night cover
  • Partial night cover
  • Console cover
  • Seat cover
  • Left stern deck with folding ladder
  • Right stern deck
  • Shower Complete with surge tank, tank in prow,outdoor embarkation and installation
  • Complete dingy heuling belt kit for launch/accommodation
  • Anchor windlass installed with motor, cable, chain and double controls (in console and anchor housing)
  • Eletric panel
  • 7 kg stainless steel anchor
  • Wake board kit complete with counterplates
  • Electric refrigerator (12/24V)
