ZAR87 Welldeck
Features
- Driving consolle in VTR with anatomic 2 seater front seat,multifunctional anatomic driver’s couch for 3 seaters with 2 driving position (sitting up or down), steering gear and stainless steel handrail, hydraulic steering gear, windscreen, peak under the driver’s couch; separated toilet; predisposition for double bed with peaks; n. 3 portholes
- 3 rows that can seat 10 persons forward running
- front sun bathing bed convertible into a double bed (cm 190 x 230) with extensions as an optional
- 195 x 2000 back sunbathing bed with extensions as an optional

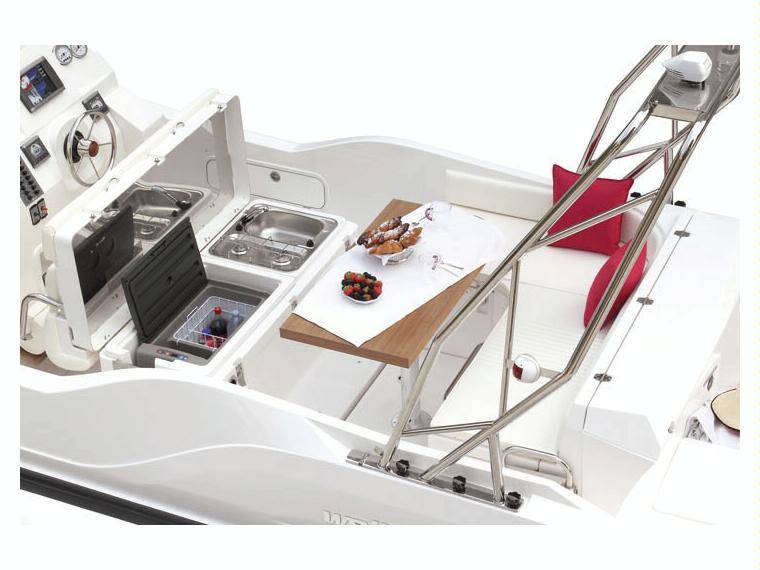

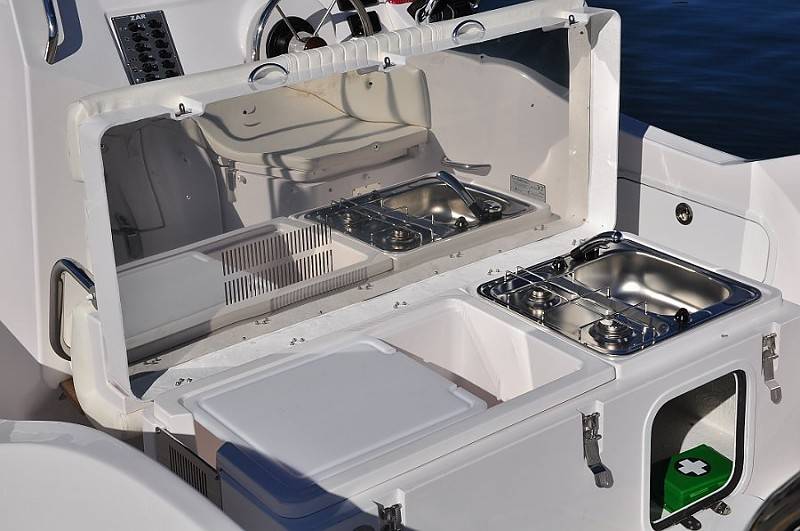

- kitchen area under the driver’s couch equipped with: sink, mincing board, double gas ring and refrigerator special compartment predisposition • wide stem dinette with a table as an optional
- close cell cushions
- padded interior sidewalls and bow
- wide rear peak
- wide front peak
- back peak with the mooring accessories
- 5 side peaks in the sides
- 3 gas springs for afterpeak and forepeak covers
- anchor winch nose with stainless steel bow, 9 kg. stainless steel anchor
- 1 tank of about 550 lt complying with CE regulation
- bilge pump
- 7 Stainless steel handles
- 2 stainless steel grab rods in prow
- 4 bollards
- perimetric double millpond
- stainless steel ladder
- 2 dashboards in VTR
- 4 rubber handling handles
- 3 stainless steel eyebolts for hangers
- repairs kit, inflating device, a pair of paddles
Technical Data
- Static self emptying
- Length m 8,70
- Width m 3,20
- Internal walking length m 8,70
- Internal walking width m 2,25
- Intertubular width m 2,00
- Tubular diameter cm 60
- Watertight compartments n. 6
- Seating capacity n. 12/14
- Net dinghy weight kg 2,100 (with standard equipment, without liquids and motor) ± 10% variable datum
- Maximum power applicable KW 442 HP600
- Minimum power applicable (minimum performance)HP 300
- Power recommended (average performance) HP300
- Engine shaft lenght
- 1 engine XXL
- 2 engines XL
- weight installable motors kg 600
- CE certification with “B” design category (A+a form)
Optional Equipment
- Stainless steel roll-bar with fibreglass bases
- Roll-bar installation with running lights, anchorage lights, horn and wiring • Beacon ready installed on roll-bar/console
- Prow sunbed extension
- Stern sunbed extension
- Total sheet for night and travelling
- Console cover
- Seat cover Electric panel Shower (for stern external wash basin and bathroom in console) complete with autoclave, water tank, outdoor embarkation, discharge pump and installation
- Complete dingy heuling belt kit for launch/accommodation Anchor windlass installed with motor, cable, chain and double controls (in console and anchor housing)
- Electrical actuator for stern peak lifting
- Electric sea WC with installed direct discharge
- Electric sea WC with installed black water tank
- Full set of cabin cushions + 6 cushions in different colours
- Wooden floor + step cover + shower for cabin and bathroom
- Table inside the cabin
- Chartwork light inside the cabin
- Service light inside the cabin
- Electric refrigerator (12/24V)
- Two burner cooker
- Flexi-teak for cockpit
- Flexi-teak installation
- External night canopy
